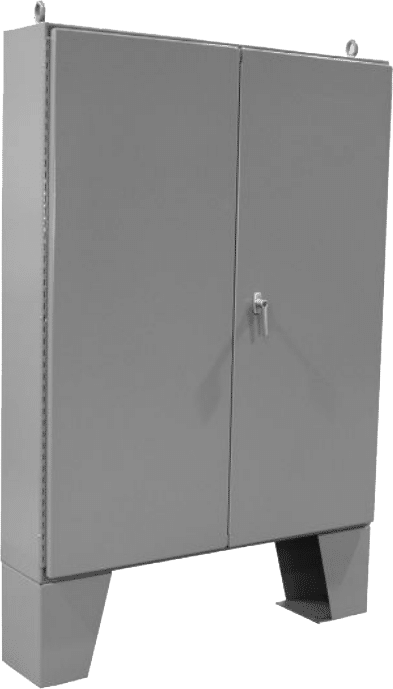

Type 12 Painted Floor Mounted Double Door Enclosures



Description

C & I Enclosures Type 12 Painted Floor Mounted Double Door Enclosures are UL Listed for indoor use to provide a degree of protection against dust, dirt, fiber flyings, dripping water, and external condensation of noncorrosive liquids.



Construction

Fabricated in accordance with U.L. specifications from code gauge material. An oil resistant gasket is attached to the doors. The enclosures are provided with continuous hinges. The enclosures have overlapping doors which eliminates the need for a center post. A three point latch is provided which incorporates roller arms to hold the doors securely closed. Each enclosure is provided with twelve inch legs and lifting eyes for easy handling. All seams are continuously welded and ground smooth. Collar studs are provided for mounting optional panels.



Material / Finish

Provided with an ANSI 61 gray polyester powdercoating inside and out over paint grip galvanized steel. Also available in type 5052 H-32 aluminum, type 304 or type 316 stainless steel. Aluminum and stainless steel boxes are provided unpainted with a brushed finish on the exterior.
